How to use the "Operator" view

Introduction

  • This guide describes how your operator can manage your unit with the operator view.

Operator

This is view is meant for operators, that manages units, like categorizing stops, changing orders or starting breaks.

Go to Views -> Operator:

Operator site

The operator view has the following parts:

  • Configure button
  • Active unit status
  • User defined operator
  • View presenter

Configure button

This button is for opening the configuration of the operator site.

See Configure site

Active unit status

This label shows the active status of the unit.

The description shows if the unit is running or the stop cause of the active stop on the unit. The background shows if the unit is running or the type of the active stop.

  • Green: Running, the unit is running.
  • Gray: Scheduled Loss, the unit is not scheduled for production at the current time.
    • Yellow: Info Stop, the unit is in a stop, that affects performances aspect.
    • Red: Planned stop, Unplanned stop, the unit is in a stop, that affects availability aspect.

     User defined operator

    This is the control for using an user defined operator.
    This is used for binding operators to stops.

    See How to use user defined operators.

    View presenter

    This shows a view, a view decides what is show on the main part of the operator site and the view controls that can be accessed. See View for how to select a view.

    View information

    • OEE: The OEE percentage number.
    • Availability:  The availability percentage number.
    • Performance: The performance percentage number.
    • Quality: The quality performance percentage number.
    • Total: The number of total produced items.
    • Accepted:  The number of accepted items.
    • Rejected: The number of rejected items.



    View controls

    There are the following view controls available:

    • Orders: Here you can change the order and product.



      To change and order or product. Click the Change order button:

      Provide the order name for the next order on a unit:


      The default order, that the control suggests uses the following structure: year + Month + Day + order runs on the date + 1. So the example above is 2020 = year, 9 = month, 10 = day, 1 = Order runs on the date + 1.

      Select a product for the next order on a unit.


      You can now start an order by clicking the Start Order button:
      If a order is running, then you can stop the active order by clicking the End Current order button.

    • Current stop: Here you can split current active stops and start breaks:



      Active stop
      If a stop is active on the unit then its stop cause and duration will be shown.
      There is no active stop on the unit here:


      There is a active stop on the unit here:


      Split active stop

      You can split the active stop into 2 stops on the unit.
      Clicking the split button, splits all active stops into 2 stops.

      If the Split button not shown, then you have to setup it first:
      Go to Configuration->Units:


      Select your unit:


      Check Show split stop button:


      Select your stop event servers. (The stops that you see on a unit are created from event servers or from a break button, a full description of splinting stops can be found in How to split current stops on a unit)

      Click the Save button:


      Breaks

      See Show break button on how to configure and show the break buttons.

      To start a break, click the break button.
      You can see that the unit is on a break, when a big blinking end break button is show:



      To end the break, click the break button again.
    • Uncategorized stops: Here you can categorize stops:



      The number of stops that can be categorized into more specific stop causes is shown:


      To categorize the stops click the Categorize stops button:



      A list of stops that can be categorized will be shown.


      Select a stop by clicking the Categorize button:

      Now you can select a stop cause based on the tree structure of the stop causes:


      A full description of this window can be found in How to use stop reason tree structure under the section Categorize a stop.

       The ! icon shows that the stop cause needs a comment.


      A full description of commenting on stops can be found in How to comment on stops.

      You can configure the list of stops, that can be categorized, to be updated automatically when it is open. See Auto update of "Categorize stops".

      You can also update the list manually by click the refresh icon:



    • Report rejects: Here you can register produced times that was rejected:



      You can manually add rejects to the current order,  if you have set your unit's Rejects registered by to User.




      Then the Report rejects controls will be shown:


      To add rejects to the current order, select the amount and click the Add button.

      If you manually change the order, then you need to provide the total amount of rejects for the current order:


      Because changing the order manually with Rejects registered by set to User, will overwrite the current order's rejects if there is a difference between your input and the registered rejects in current order before ending it.

      The point of the using the Report rejects control, is that you can on the fly report the rejects as they occur and have this shown in the reports like Reports->Period, if you wait with reporting the rejects until you stop the current stop, then this will result in one timestamp for all the rejects.

    Configure site

    This setup what is shown on the operator view.

    Click the configure button:

    Unit

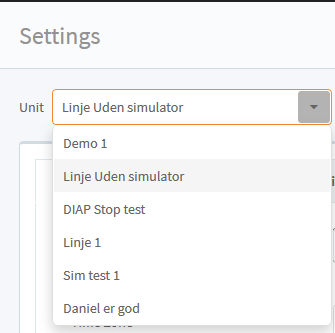

    Select the unit that you want to manage:

    View

    Select what you wish to view on the site:

    Availability, performance and quality

    In this view you will see:

    • OEE
    • Availability
    • Performance
    • Quality
    • Total
    • Accepted
    • Rejected

    In this view you will have access to the following controls:

    • Order
    • Current stop
    • Uncategorized stops
    • Report rejects

    Availability and performance

    In this view you will see:

    • OEE
    • Availability
    • Performance
    • Total

    In this view you will have access to the following controls:

    • Orders
    • Current stop
    • Uncategorized stops

    Availability

    In this view you will see:

    • Availability

    In this view you will have access to the following controls:

    • Orders
    • Current stop
    • Uncategorized stops

    Availability without orders

    In this view you will see:

    • Availability

    In this view you will have access to the following controls:

    • Current stop
    • Uncategorized stops

    Availability without orders and uncategorized stops

    In this view you will see:

    • Availability

    In this view you will have access to the following controls:

    • Current stop

    View OEE for

    Select which period, you want to view OEE data for

    • Current order: This covers the current active order.
    • Current shift: This covers the current active shift.
    • Past hours: This covers now and x hours backwards.

    Decimals of the production numbers

    You can configure how many decimals the production (Total, Accepted and rejected) numbers should have.

    Select the number of decimals under "Production":

    Full screen

    Select if you want to use all the browser's window to view the content of the site.

    Not selected:

    Selected:

    Auto update of "Categorize stops"

    Select if you want the popup with the list of uncategorized stops to be updated automatically:



    Show break button

    Select if you want the break buttons shown(You have up to 2 buttons here):

    Select a stop for a break button by click it's Change button:

    Select a stop:

    And click the Change button in the popup:

    You can also clear a stop from a break button, by clicking it's clear button:

    Note: The break buttons are only show, if your selected view has the Current stop control included and you have selected a stop for the break button.

    Configuration applied

    Now your configuration is done:

    Click the apply button, to use the operator site:
