      How to use "Stop history" Report

      Introduction

      • This guide describes how you manage stops that has ended in Stop History Report.

      List stops

      Go to Reports->Stop history:

      Now select the unit, which stops you want to manage:

      Select the period, which the stops started in:

      (You can search on with Day, Week, Month and Year):

      You can filter the data, by selecting a Order, so only stops within that order is shown(When is select All the data isn't filtered):

      You can select a Product, so only stops within orders, that was producing that product is shown:

      You can select a Shift, so only stops within that shift type is shown:

      You can select a Product Type, so only stops within orders, that was producing products, that belongs to that product type is shown:

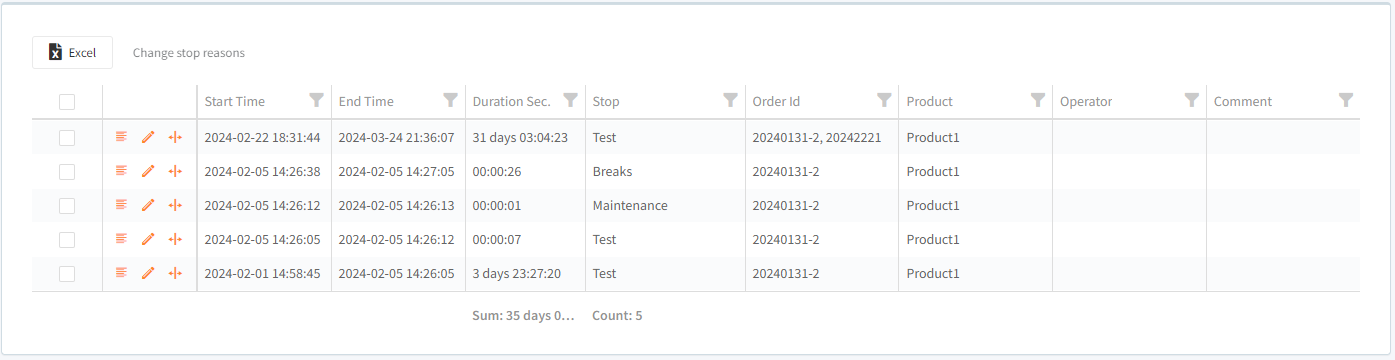

      Click Apply to have the stops listed:

      A stop's information

      A stop has the following information:

      • Id: This is the unique identity for a stop.
      • Operator(Only if enabled): This is the user defined operator that was used, when the stop was categorized. (See more here How to use user defined operators)
      • Start Time: The date time for when the stop started.
      • End Time: The date time for when the stop ended.
      • Stop: The stop reason, that the stop has been categorized to.
      • Duration Sec.: The duration of the stop, this has the format d.hh:mm:ss, there d is days, hh is hours, mm is minutes and ss is seconds.
      • Comment: This is shows the first comment, add to the stop.

      Change stop reason

      Change the stop reason for a single stop

      You can the stop reason for a stop, click the edit icon in the row of the stop:

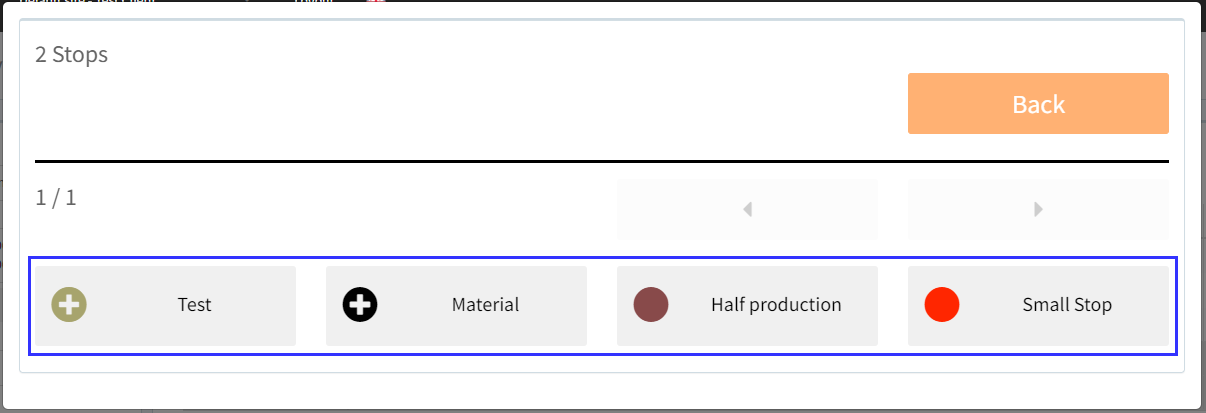

      Select a new stop reason:

      (You see more about this window in How to use stop reason tree structure under section Categorize a stop).

      Change the stop reason for multiple stops

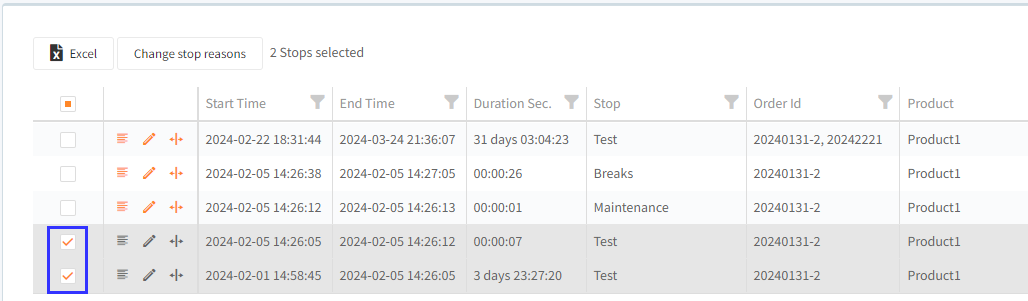

      You can change the stop reason for multiple stops by selecting them in the table:

      Click Change stop reasons:

      Select a new stop reason for all the selected stops:

      Add comment

      You can add a comment to a stop, click the comments icon in the row of the stop:

      Enter a comment:

      Click Add.

      Split stop

      You can split a stop into 2 stops, click the split stop icon in the row of the stop:

      Select a date time for where the stop should be split, by entering it:

      Or positioning the slider:

      Click Save:


      Export to Excel

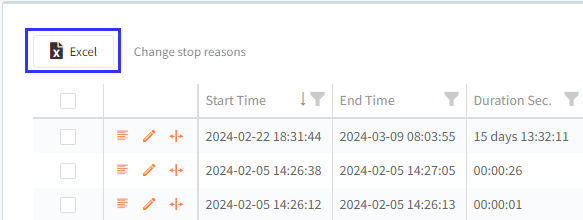

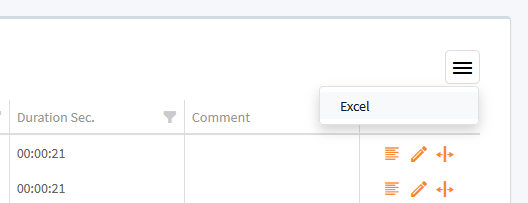

      You can export the table to excel by click Excel button:
